XD-350S II / XD-500S II

A microcomputer-controlled thyristor automatic CO2 / MAG welding machine. Featuring excellent operational performance and outstanding durability, it stands as the ‘Ultimate New Basic Model,’ designed to be robust and high-performing in all working conditions.

Product Information

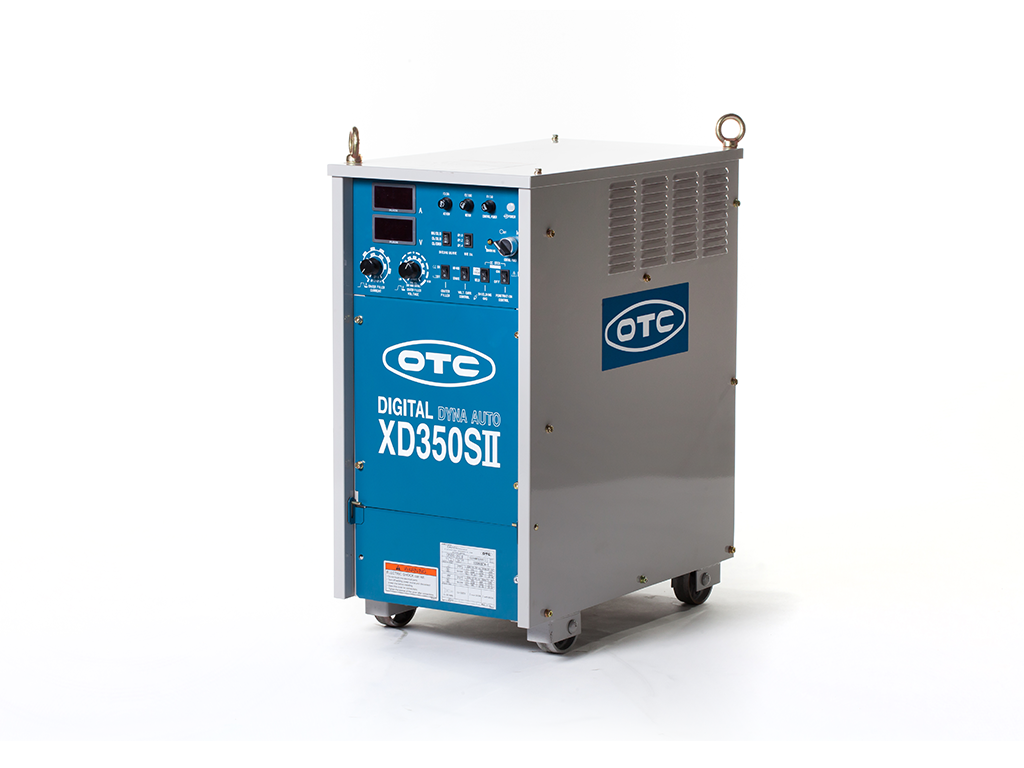

XD350S Series 2

  • Enhanced Ignition Performance: High-performance microcomputer ensures superior arc startability.
  • Improved Workability: Streamlined operations through unified control cable integration.
  • Rugged Durability: Features a standard drip-proof cover on the front panel to protect components from dust and rain during outdoor storage.
  • Eco-Friendly Design: Equipped with power-saving circuits, an automatic fan-stop function, and a gas-saving system.

Xd 350s Ii

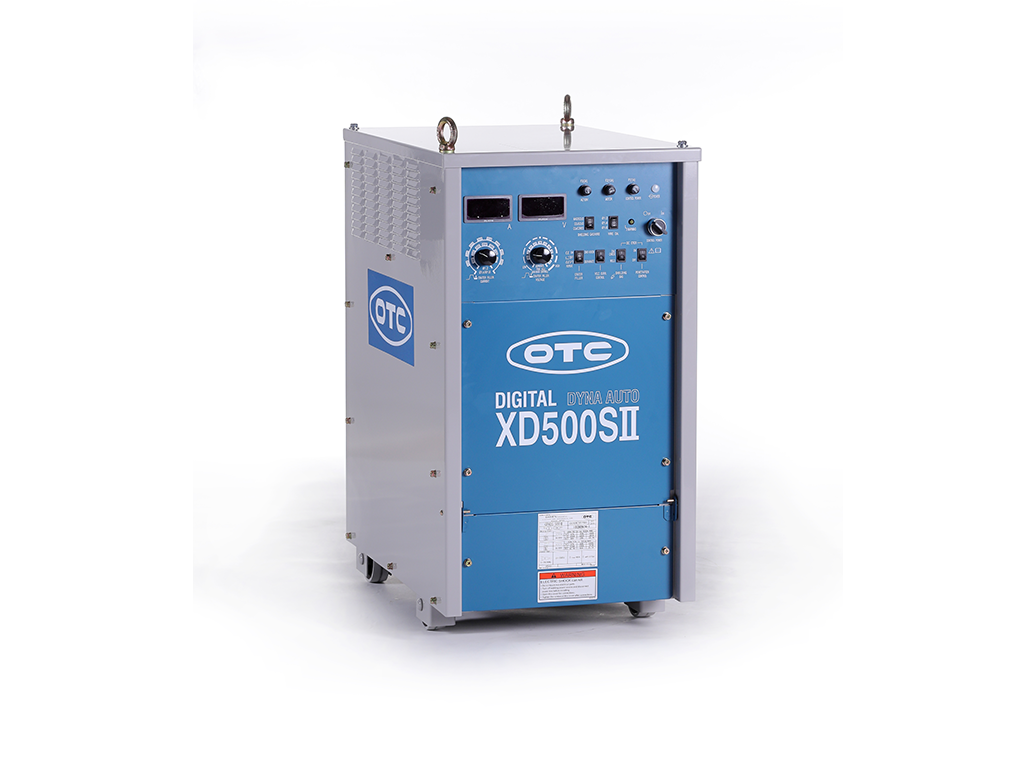

XD500S Series 2

  • Advanced Microcomputer Integration: Enhanced processing speed and memory capacity—equivalent to digital inverter models—realize expanded welding modes and instant arc starting.
  • Stable Welding Quality: Exceptional resistance to input voltage and frequency fluctuations ensures consistent, high-quality welds.
  • Precision Control: Compatible with an optional "Brake Unit" for the wire feeder to minimize wire over-run at the end of a weld, significantly improving tack welding efficiency.
  • Robust & Maintainable: Standard drip-proof protection for the control panel and an improved overall structure for simplified maintenance.

Xd 500s Ii

Specifications

Welding power supply XD-350S II XD-500S II
Rated input 3 Phase 380/400V 3 Phase 380/400V
Rated output 350A/36V 500A/45V
Output adjustment range 50~350A/15~36V 50~500A/15~45V
Rated usage rate 50% 60%
Mass (dimension) 103 kg (372x690x659mm) 164 kg (454x701x859mm)
Wire feeder CM-2302 CM-2302
Welding Torch BT3500-30 / BT3510-30 BT5000-30
