The 7-axis Robot Series is engineered for applications requiring maximum reach and superior flexibility in confined or complex workspaces. The additional axis enables fluid motion around obstacles, making it the ideal solution for interior welding, tight installations, and hard-to-reach areas. Reliable, space-saving, and highly adaptable, these robots transcend the limitations of standard 6-axis models to significantly enhance productivity.

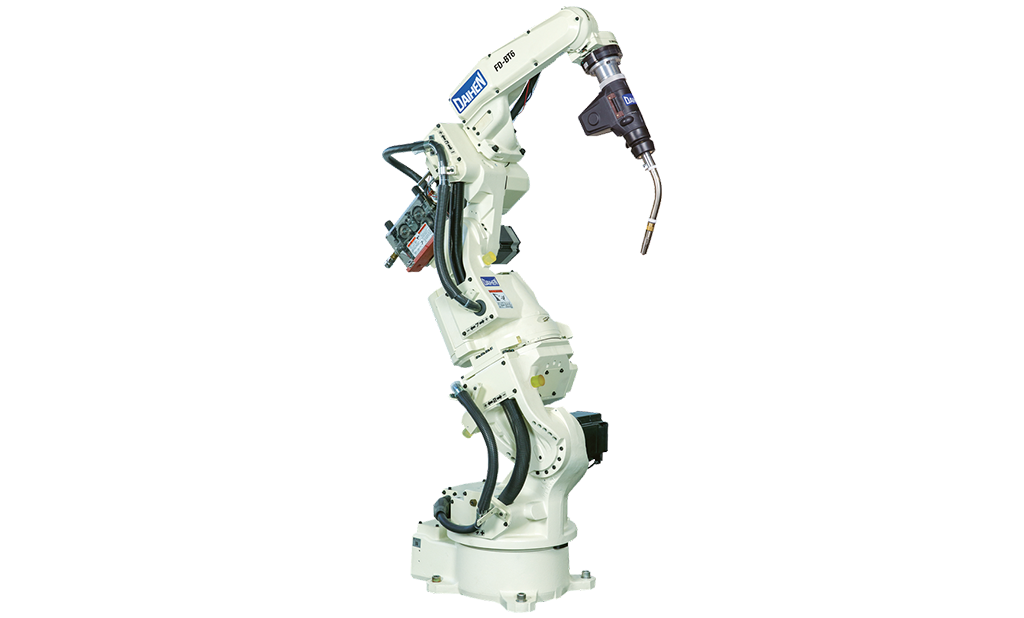

The FD-BT6 is a compact, 7-axis robot designed for maximum maneuverability. Its additional axis ensures constant torch orientation in tight workspaces, while the integrated cable routing provides optimal protection during operation. With a 50% increase in payload compared to the B4S model, it offers enhanced versatility for welding, manufacturing, and handling applications.

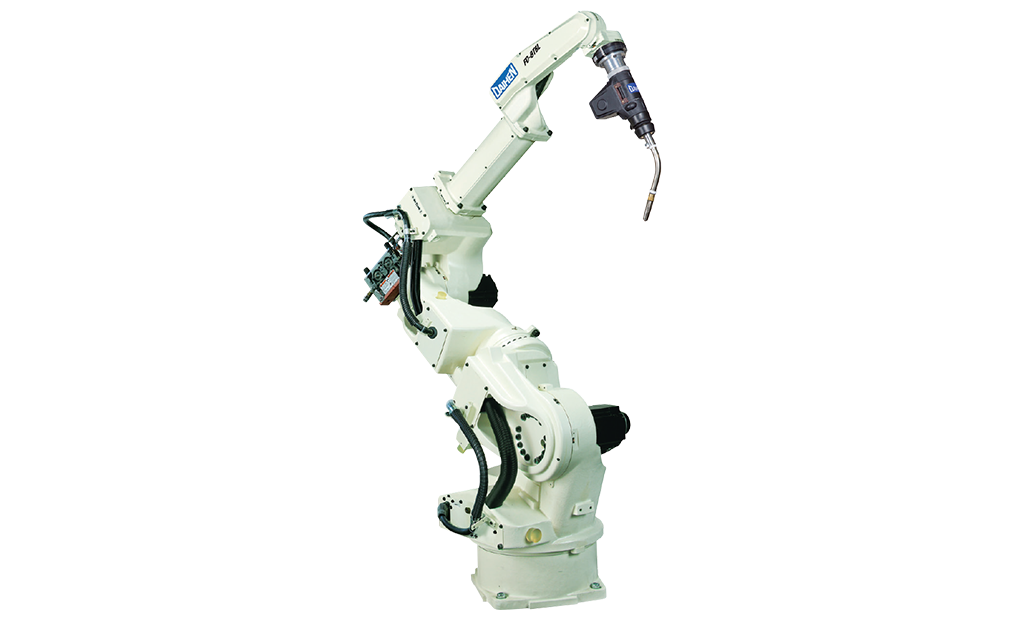

The FD-BT6L combines high-speed 7-axis flexibility with an extended arm for a larger working radius compared to the standard FD-BT6.
| Type | FD-BT6 | FD-BT6L |
|---|---|---|
| Number of axes | 7 | 7 |
| Working range | R 1435mm | R 2008mm |
| Max. payload capacity | 6 Kg | 6 Kg |
| Additional payload capacity axis 3 | 10 Kg | 10 Kg |
| Protection class upper arm | IP 65 (J5, J6) | IP 65 (J5, J6) |
| Weight | 183 Kg | 326 Kg |
| Ambient temperature and humidity | 0 ~ 45C, 20 ~ 80%RH (No condensation) | 0 ~ 45C, 20 ~ 80%RH (No condensation) |
